Acrylic Rotameter

bypass-rotameter
REQUEST A QUOTE
Download Brochures

Products Overview

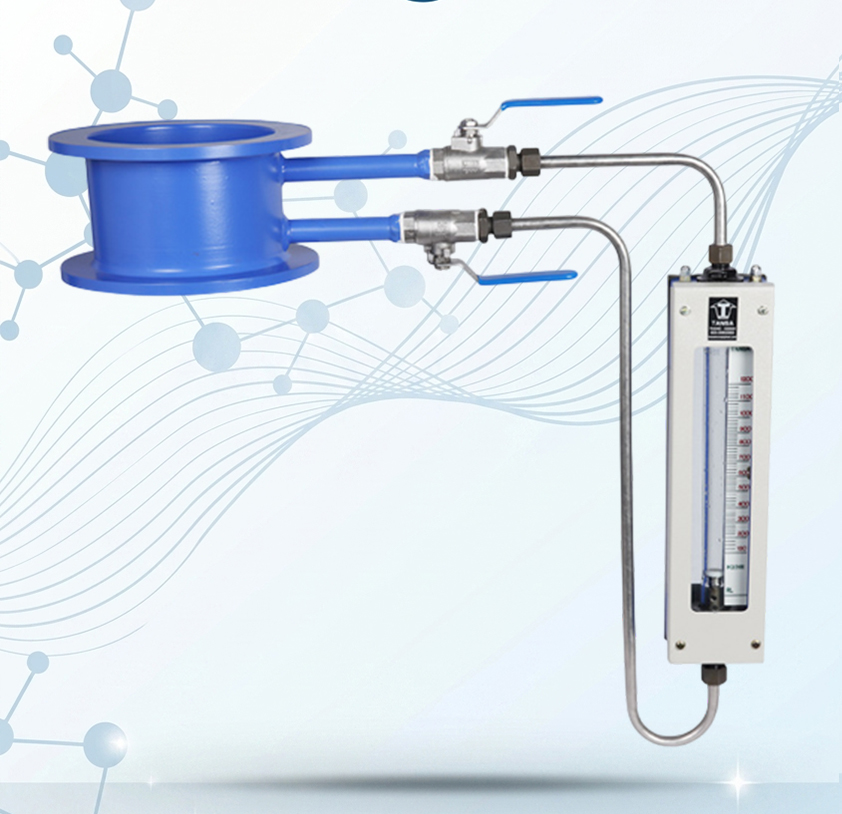

By-Pass Rotameter is an Inference type flow meter. Differential pressure (DP) is created by providing an Orifice Plate in the main line. Due to the differential pressure, fluid flows through branch pipes provided across the upstream and downstream sides of the Orifice Plate. An additional Range Orifice plate is provided in the by-pass line as flow through the by-pass line will be in proportion with Main Line.

Specifications

 By- Pass Rotameter Type: Glass Tube /
 Metal Tube / Acrylic
 Flange: CS /A 105 / SS 304 / SS 316
 Carrier Ring: CS /A 10S / SS 304/SS 316
 Line Size from 80 NB to 300 NB
 Main Orifice Plate: SS 316 / SS 304 / PTFE
 Range Orifice Plate: SS 316 / SS 304 / PTFE
 Accuracy :+/- 5% of FullScale
 Measuring Span : 1:10
 Scale: Acrylic / Aluminum / SS
 Measuring Span : 1:10

APPLICATION :

Arcylic Rotameters are mainly suitable for Indoor Applications. These Rotameters are used for Air, Waterand other non-corrosive fluids.

OPTIONAL FEATURES :

Two-Wire Transmitter & Latching Type Switch can be provided in by-Pass Rotameter.
