Product overview:

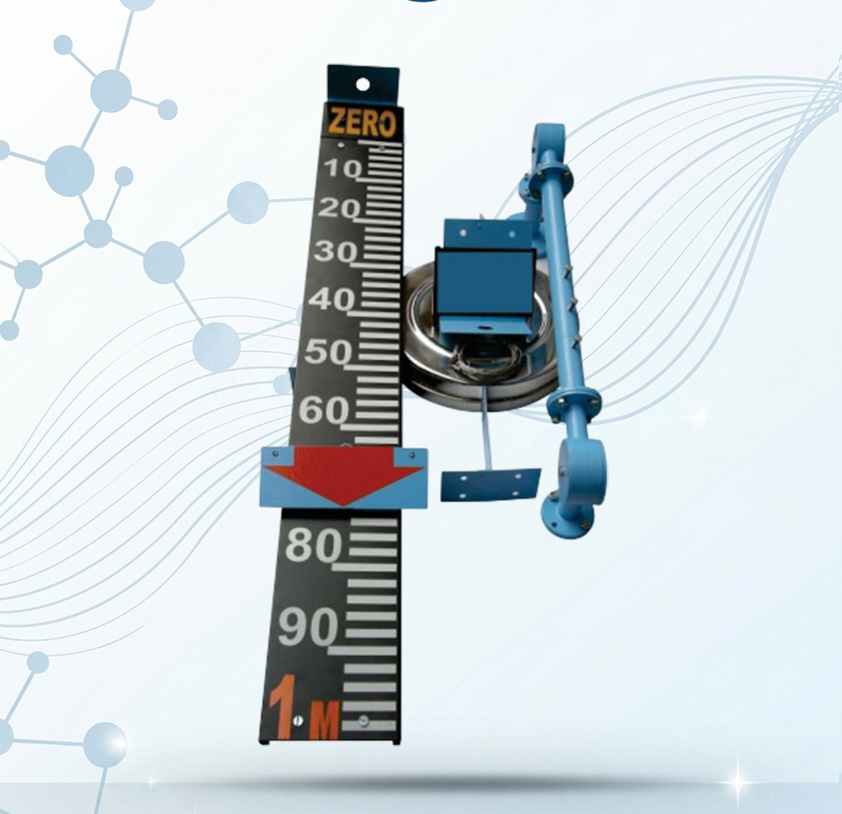

Float and board level indicator is attached to a multi stand wire rope, which passes through 2 nos. friction less specially designed pulleys. The Pulleys in turn are connected to a pointer, which moves on a graduated scale by the side of the tank.

Specifications

 Clear visibility
 Powder coated screen printed scale board
 Less corrosion powder coated finish
 Easy movement nylon roller pointer glides effortlessly
 No guide wire specially designed self centering float/Anchor plate optional
 Non- stretching multi stand wire rope in SS/PP
 Dust free housing for pulleys – minimizing friction in movement
Easy to install, modular design
 Vapor tight-version for evaporating fluids

Applications:

Water, Veg oil, LSHS, Molasses, Caustics, Brine, H2SO4 etc. Vapor sealed for Solvent, Hcl, and NH4OH etc…
