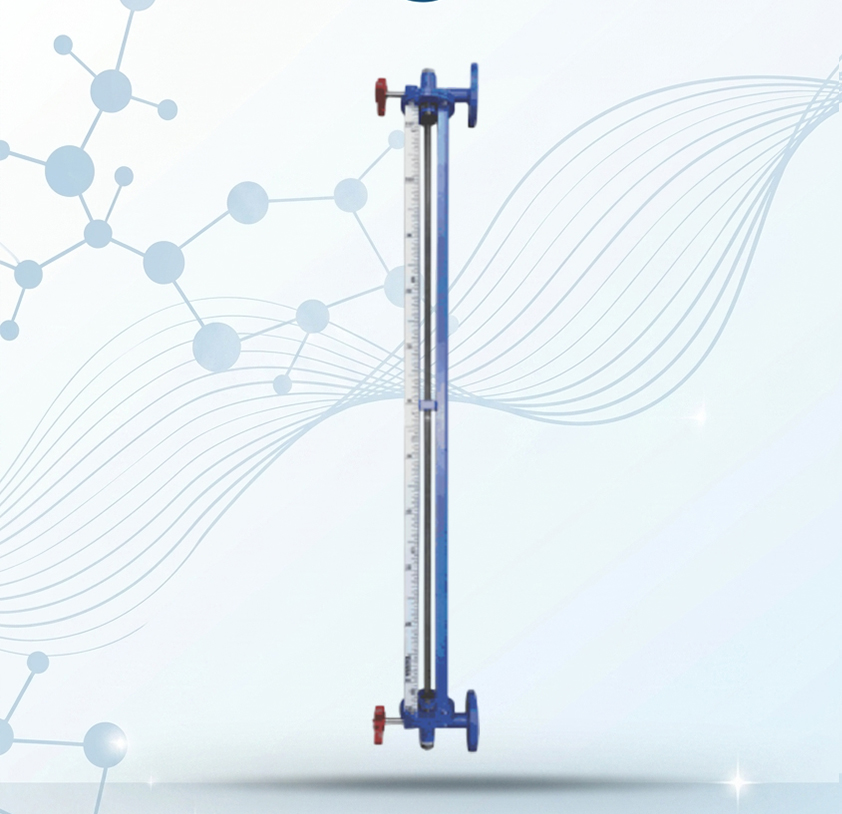

Tubular Level Gauge

tubular-level-gauge1
REQUEST A QUOTE
Download Brochures

Products Overview

Tubular Level Gauge is one of the simplest forms of level indication used over the years. These level gauges are used in ow or medium pressure conditions. Tubular Level Gauge is mounted on the side of the tank or vessel. It consist of Glass Tube, Protection Frame, Packing material, End blocks, Isolation Valves, Vent and Drain Plugs.

Advantage:

 Glass Tube : Borosilicate, 16mm to 28mm Heavy Wall (HW)
 Protection Frame : ‘C’ Channel – CS / SS 304 / SS 316 / FRP
 End Blocks : CS / SS 304 / SS 316 / PTFE Lining
 Process Connection : Flange / Screwed / Triclover
Isolation Valves : Screwed Bonnet or Bolted Bonnet Isolation Valve with Auto Ball check
 Vent and Drain : ½” Plug / ½’ Ball Valve / ½” Needle Valve
 Packing : PTFE
 Connection Orientation : Left / Right / Back / Vertical
 Line Size from 15 NB to 5ONB
 Center to Center Distance (CCD) : 200mm to 3000mm
Scale : Aluminum / SS / Acrylic
 Scale : Acrylic / Aluminum / SS
 Max. Hydro Test Pressure: 10 KG/CM2
 Max. Temperature: 100 Deg C
